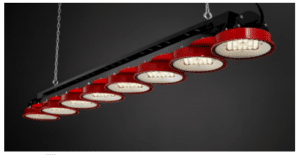

Kerman – ExProof Industrial Z2 product line
Category: Atex Lighting
Very high efficiency explosion-proof LED lights
The maximum number of lights connected to 1 circuit breaker may differ depending on the type of circuit breaker. Please consult the manufacturer of the circuit breaker.
| Type | Ex Zone | Power consumption | Luminous flux of luminaire | Weight (kg) |
| Ex Proof Industrial Z2 | Z2/Z22 | 132W | 15800lm** | 7 |
| Ex Proof Industrial Duo Z2 | Z2/Z22 | 269W | 32000lm** | 13 |
Industrial Z2 product line is equipped with LED light sources. Thanks to the high design quality, the lifetime of the luminaire is very long. Over 50,000 hours. Therefore the service costs are low. The luminaire can be ordered with dimmable driver. A universal mounting bracket is included with the luminaire, which enables easy mounting on ceiling. There are different available mounting accessories too, which include wall mounting, hanging or mounting on pipe bridges and lighting poles.
| Nominal supply voltage | 220-240V AC |
| Power factor | >0,9 |
| CCT | 4000K |
| Optional CCT | 3000K,5000K |
| CRI | >80 CRI |
| Beam angles | 60°/ 90° |
| IP Class | IP 65 |
| IK Class | IK 09 |
| Dimming (optional ) | DALI |
| Electric protection | CLASS I (protective earth) |
| Surface treatments | Power coating |
| Materials | aluminium, galvanized steel, glass |
| Lifetime | >50 000 hrs |
| Ambient temperature | -20°C =+45°C |
