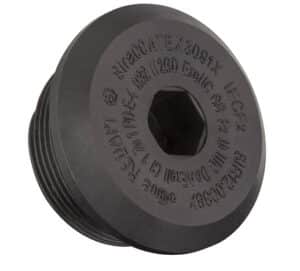

Hexangonal Stop Plug – Ex Certified – (PH-E Series)
Redapt PH-E Series of Hex Head Stopping Plugs provide a method of blanking off unused entries in hazardous area approved equipment whilst ensuring the integrity and Ex approval of the installation is maintained.
The PH-E Series of stopping plugs are designed to be installed from the outside of an enclosure and can be used in a threaded or un-threaded entry hole. An appropriate sized sealing washer can be used to ensure the required level of ingress protection is maintained.
Redapt Hex Head Stopping Plugs are designed for hazardous area applications and are certified to protection concept Exe “Increased Safety” for use in Zone 1 and Zone 2 applications.
Approved to the latest international
standards stopping plugs can be supplied with ATEX (CENELEC) and GOST-R
hazardous area certificates.
| Protection Method |
Exe – Increased Safety |
|---|---|
| Ingress Protection Maintained |
IP64 |
| Impact Resistance |
7Nm |
| Ambient Temperature Range |
-50°C to 100°C |
| Materials |
Brass CZ121, 316 Stainless Steel, Aluminium 6082, Mild Steel EN1A |
| Plating |
Nickel, Electroless Nickel, Zinc, others on application |
| O-Ring Materials |
None |
| Standards Approved To |
IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1 |
| ATEX Approval |
SIRA00ATEX3092X |
| IECEx Approval |
TBC |
| GOST-R Approval |
RU ?-GB.??06.?00106 – Russian RU ?-GB.??06.?00106 – English RU ?-GB.??06.?00106 Annex document – English |
| CSA Approval |
1248014 (LR 106084-2) |
In addition CSA approval certificates can be supplied to cover use in North American and Canadian Class I Division 2 and Class I Zone 1 applications.
