Atex Swivel Adaptors & Reducers (TA-U/TP-U Series)
Redapt 90° and Inline Series of Adaptors and Reducers provide a method of matching electrical threadforms on hazardous area approved equipment whilst ensuring the integrity and Ex approval of the installation is maintained with the addition of the new “SWIVEL FEATURE”.
The 90° version (type TP-U) of the Swivel Adaptor has been designed to allow a full 360° choice of cable entry/exit position.
This enables the installer to run the cable in any direction which greatly improves the ease of installation in confined or difficult situations. The cable entry/exit can be aligned without the over under torque compromise imposed by the direction of the cable.

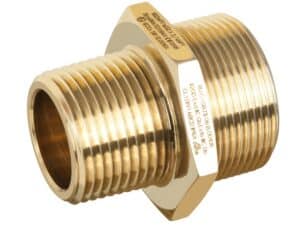

The Inline version (type TA-U) of the Swivel Adaptor allows independent connection at both ends.
Adaptors are used where the thread size of the cable gland or connection device is larger than, or of an equivalent size, to the entry thread of the enclosure. Reducers are used where the thread size of the cable gland or entry device is smaller than the entry thread of the enclosure.
Redapt Adaptors & Reducers are designed for hazardous area applications and are certified to protection concepts Exd “Flameproof” and Exe “Increased Safety” for use in Zone 1 and Zone 2 applications.
Approved to the latest international standards, adaptors and reducers can be supplied with ATEX (CENELEC), and IECEx hazardous area certificates.
| Protection Method | Exd Flameproof & Exe Increased Safety |
|---|---|
| Ingress Protection Maintained |
IP66, CSA Enclosure Type |
| Impact Resistance |
20 Nm |
| Ambient Temperature Range |
-50°C to 180°C |
| Threadforms | ISO Metric, NPT, PG, NPS, BSPP, BSPT, ET. Others on application |
| Materials | Brass CZ121, 316 Stainless Steel, Aluminium 6082, Mild Steel EN1A |
| O-Ring Material | Silicone |
| Plating | Nickel, Electroless Nickel, Zinc, others on application |
| Standards Approved to |
IEC 60079-0, IEC 60079-1, IEC 61241-0, IEC 61241-1 |
| ATEX Approval | SIRA10ATEX1275U |
| IECEx Approval |
IECEx SIR 12.0016X (Inline) IECEx SIR 10.0123U (90 Degree) |
NOTE: Swivel Adaptors are now also GOST certified
